| 序號 | 參數名稱 | 參數值 | 注釋 |

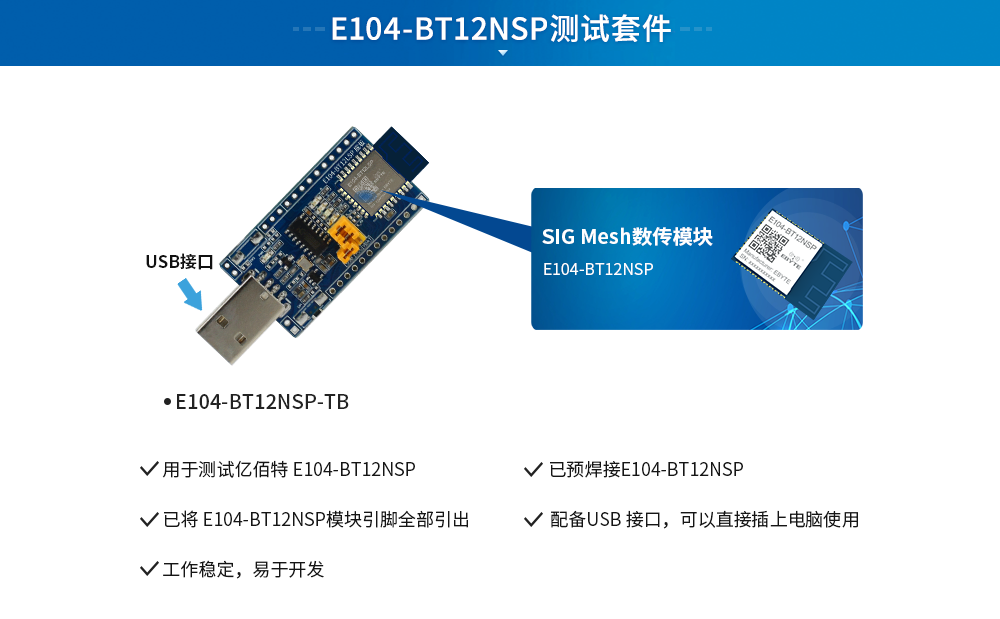

| 1 | 支持模塊 | E104-BT12NSP | Mesh 組網模塊 |
| 2 | 模塊尺寸 | 46.5 * 26 mm | 含 USB 接頭 |
| 3 | 生產工藝 | 無鉛工藝，機貼 | 無線類產品必須機貼方能保證批量一致性和可靠性 |
| 4 | 供電接口 | USB | - |
| 5 | 通信接口 | TTL | - |
| 6 | 工作溫度 | -40 ~ +85℃ | 工業級 |
| 7 | 工作濕度 | 10% ~ 90% | 相對濕度，無冷凝 |
| 8 | 儲存溫度 | -40 ~ +125℃ | 工業級 |

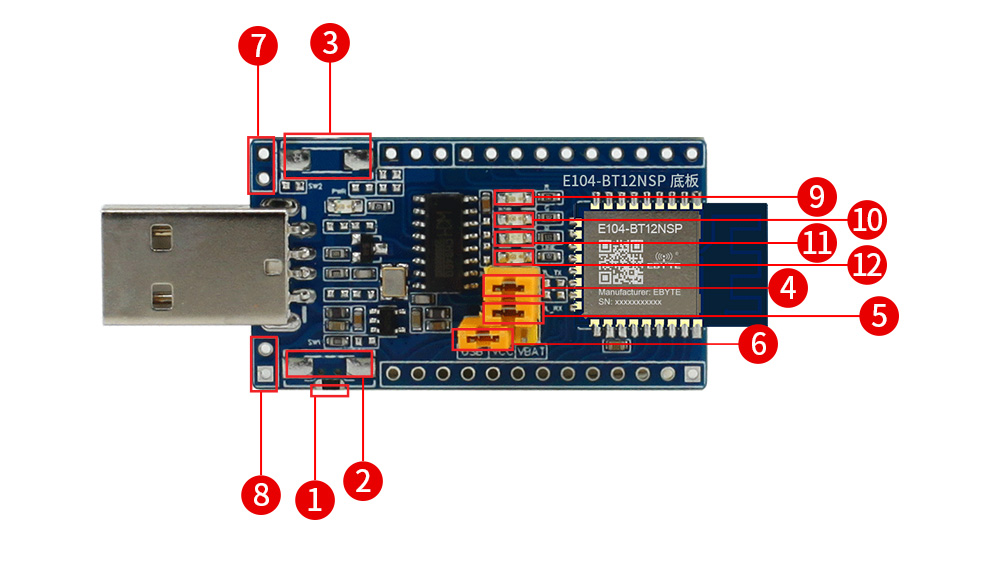

| 序號 | 引腳 | 引腳方向 | 備注 |
| 1 | RST | 輸入 | 模塊復位按鍵 |
| 2 | SW1 | 輸入 | 保留 |
| 3 | SW2 | 輸入 | 保留 |
| 4 | TX | 輸出 | 串口輸出引腳 |
| 5 | RX | 輸入 | 串口輸入引腳 |
| 6 | VCC | - | 跳線帽選擇是 USB 供電還是電池供電 |
| 7 | BAT | - | 電池供電引腳 |
| 8 | +5V | - | 外部電源供電引腳（不通過 USB 供電） |
| 9 | LED_R (PD2) | 輸出 | Pwm 輸出 |
| 10 | LED_G (PC1) | 輸出 | Pwm 輸出 |
| 11 | LED_B(PB5) | 輸出 | Pwm 輸出 |
| 12 | LED_B(PB4) | 輸出 | 網絡指示燈 |
