芯片方案：nRF52840
工作頻率：2360~2500MHz
通信距離：250m
產品重量：8.7g±0.1g

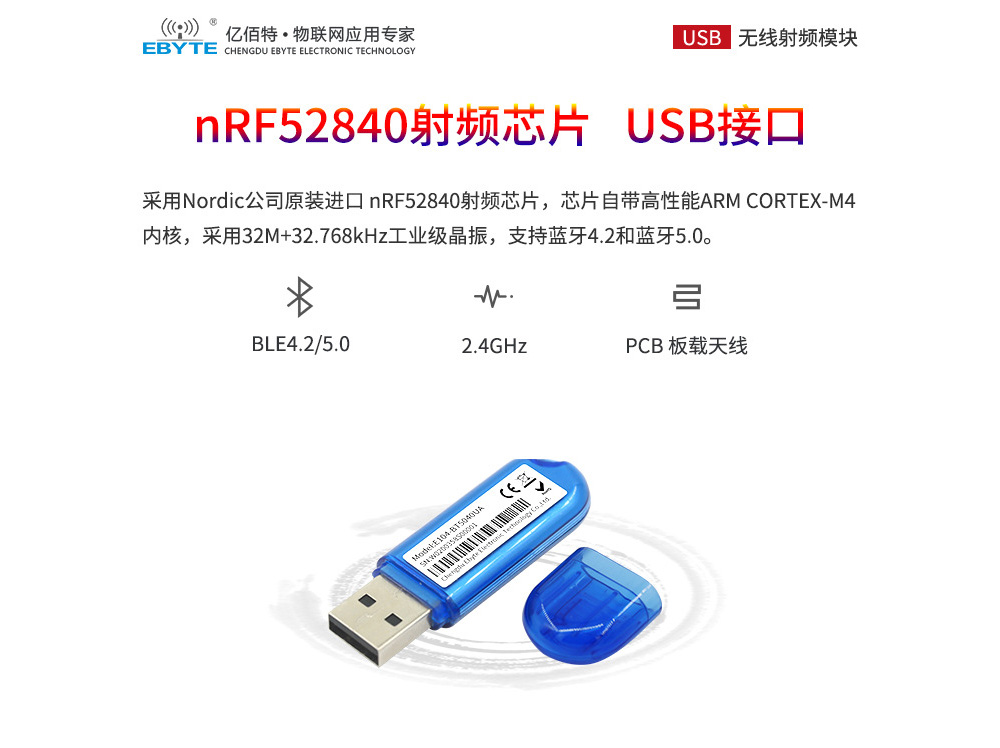

產品簡介：E104-BT5040UA是億佰特生產的一款體積極小的USB接口藍牙無線抓包工具；自帶高性能PCB板載天線，采用藍牙低能耗 (BLE) 的SOC方案。采用Nordic公司原裝進口nRF52840射頻芯片，支持藍牙4.2和藍牙 5.0；芯片自帶高性能ARM CORTEX-M4內核，采用32M+32.768kHz工業級晶振，并擁有UART、I2C、SPI、ADC、DMA、PWM等豐富的外設資源。

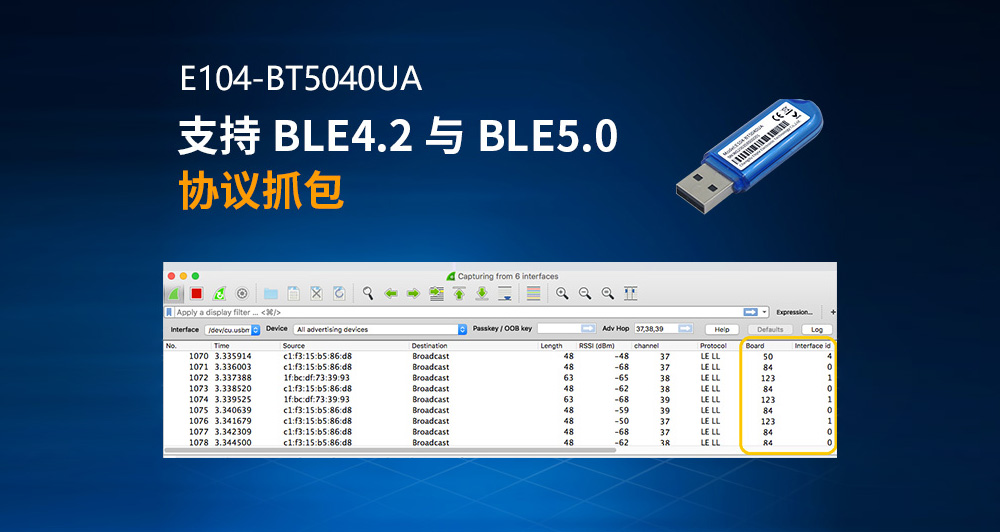

| 射頻參數 | 參數值 | 備注 |
| 工作頻段 | 2360~2500 MHz | 支持 ISM 頻段 |
| 最大發射功率 | 8dBm | — |
| 接收靈敏度 | -103dBm@BLE 125kbps （長距離模式） -95dBm@BLE 1Mbps | — |
| 實測距離 | 250米 | 晴朗空曠，高度 2.5 米，空中速率 1Mbps |
| 硬件參數 | 參數值 | 備注 |
| 晶振頻率 | 32MHz/32.768kHz | |
| 支持協議 | BLE4.2/5.0 | |
| 供電方式 | USB/1.27mm 孔 | |
| 接口方式 | USB/1.27mm 孔 | |
| IC 全稱 | nRF52840-QIAAC0/aQFNTM 73 | |
| FLASH | 1024kB | |
| RAM | 256kB | |
| 內核 | ARM@ Cortex ? -M4 | |
| 外形尺寸 | 59*18mm | 加外殼帶帽 |
| 射頻接口 | PCB 板載天線 | |
| 電氣參數 | 最小值 | 典型值 | 最大值 | 單位 | 條件 |
| 工作電壓 | 4.35 | 5 | 5.5 | V | USB/VBUS 供電 |
| 通信電平 | 0 | 3.3 | 3.6 | V | 使用 5V 電平有風險燒毀 |
| 發射電流（TX only run current (DCDC, 3V) PRF =+8 dBm） | - | 17.05 | - | mA | |
| 發射電流(TX only run current (DCDC, 3V) PRF =+4 dBm) | - | 12.68 | - | mA | |
| 發射電流(TX only run current (DCDC, 5V, REG0 out = 3.3 V)PRF= 0dBm) | - | 7.25 | - | mA | |
| 發射電流(TX only run current (DCDC, 3V)PRF = 0dBm) | - | 7.63 | - | mA | |
| 發射電流(TX current (3V) 1Mbps BLE measured from VBAT with PRF=9dBm) | - | 32 | - | mA | |
| 接收電流(RX only run current (DCDC, 3V) 1Mbps / 1Mbps BLE) | - | 7.71 | - | mA | |
| 接收電流(RX only run current (DCDC, 3V) 2Mbps / 2Mbps BLE) | - | 8.27 | - | mA | |
| 工作溫度 | -40 | - | +85 | ℃ | 工業級 |
